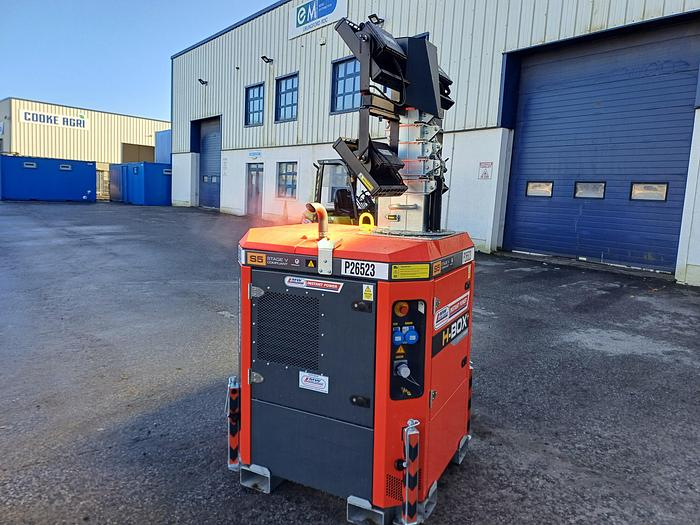

Himoinsa HBOX+

Himoinsa HBOX+

Contact us for price

Location:Urlingford, Ireland

orCall +353 56-8831418

Description

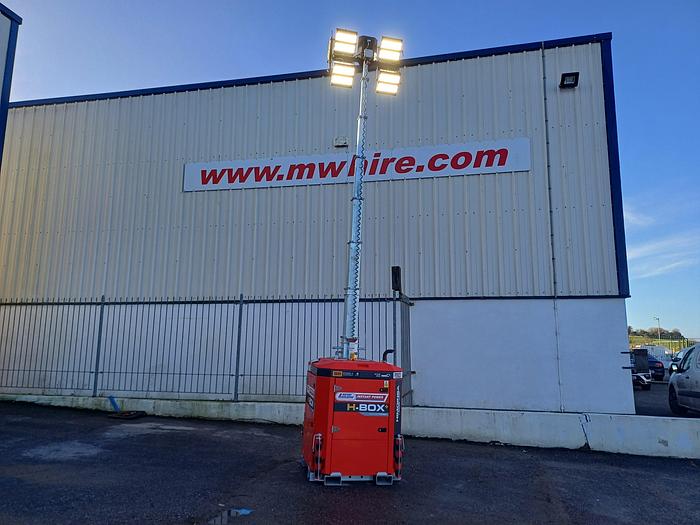

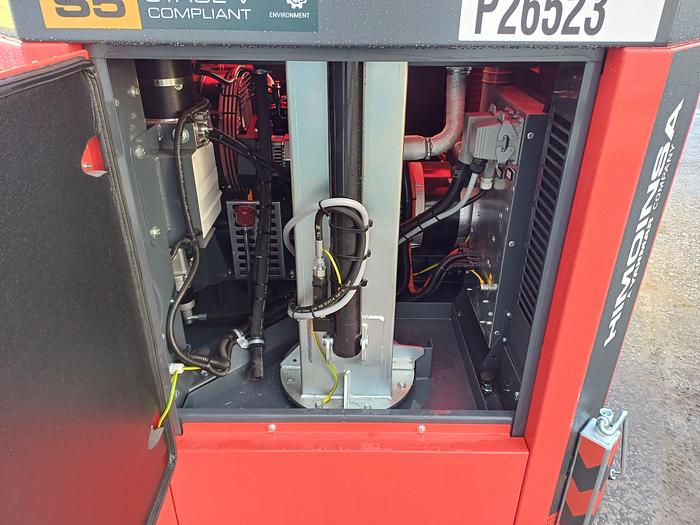

Hydraulic telescopic mast with 8 sections

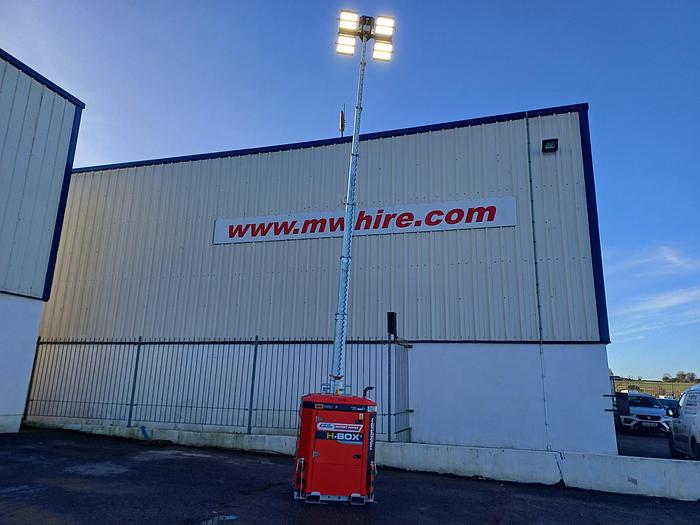

Reaches a working height of 8.4 metres

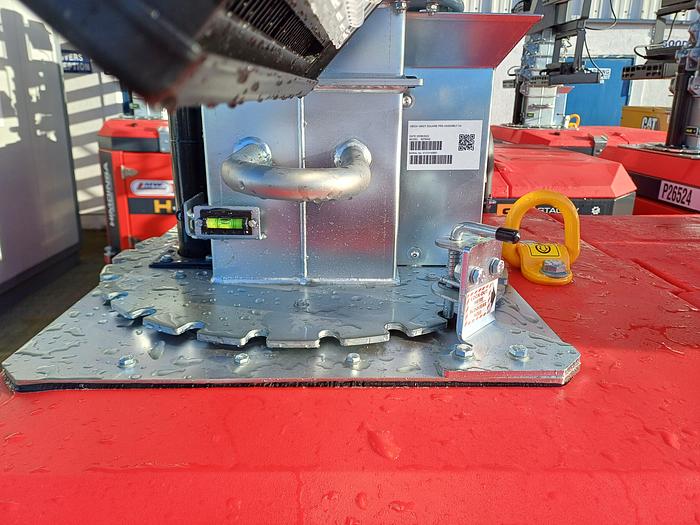

Bubble level located at the bottom of the mast

Guides for fixation during transport

4 extendable stabilizers to guarantee stability

Output Manifold

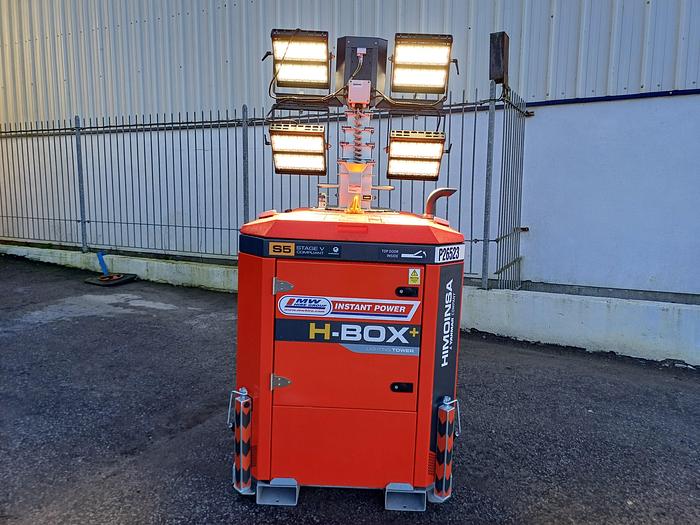

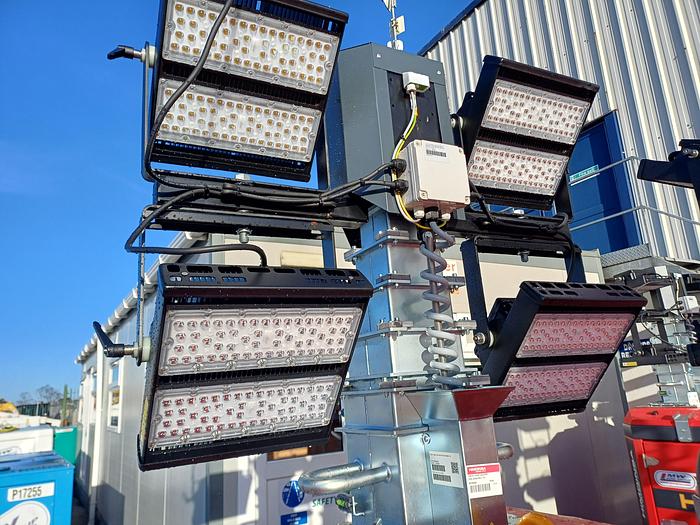

Tilting Lights until 180 degrees

Lifting hook and forklift pockets on all 4 sides

Emergency stop

Wide accesses for maintenance and control

Area Coverage > 20 lux : 6400 m2

Light sensor at the top of the mast

Electrical control panel with earth leakage protection

Siren

Thermal magnetic switches for spotlights and auxiliary sockets

The raising and descent of the mast is controlled only through 12 Vdc from the battery

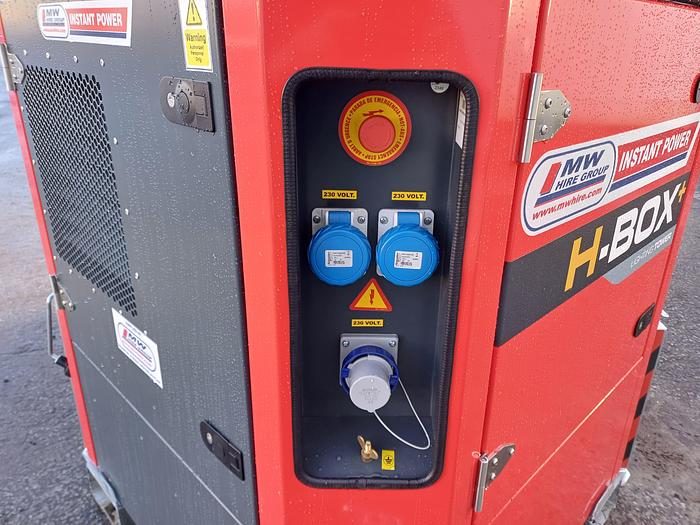

Two 16 amps auxiliary power sockets for the supply of power to auxiliary equipment

One 32 amps supply auxiliary entry that allows the supply of current from an external source

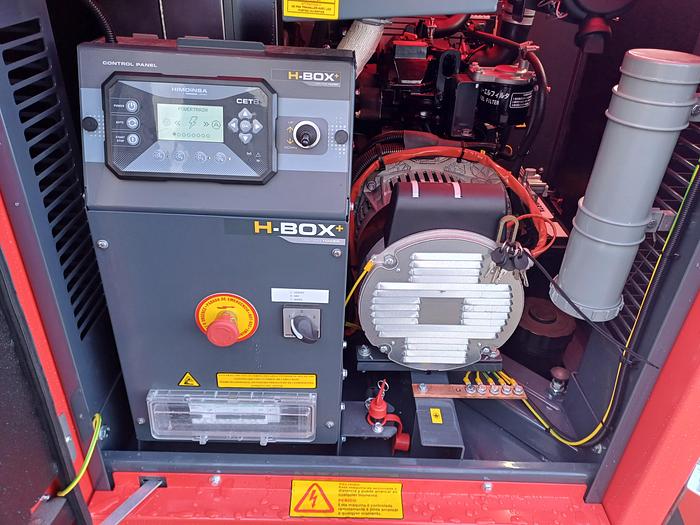

Electric panel for control, protection and managing

CET8-Controller

Managing joystick (For ascent and descent)


Specifications

ManufacturerHimoinsa
ModelHBOX+
Year2023
ConditionNew

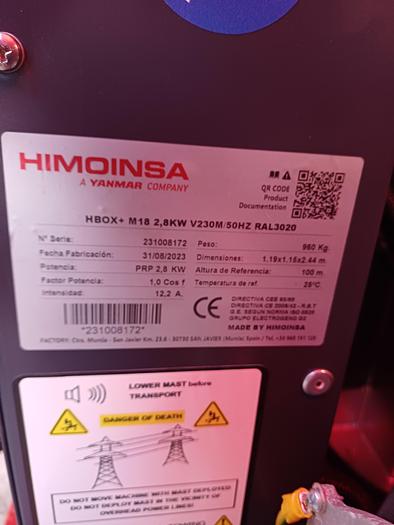

Serial Number231008172
Stock NumberP26523
HoursNew/Unused

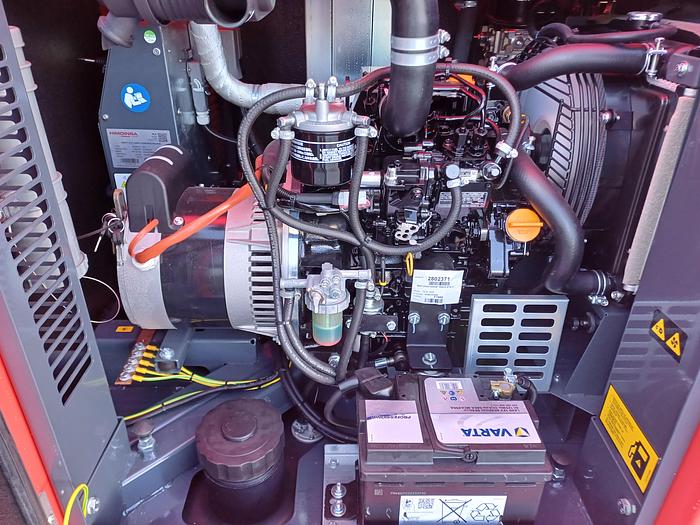

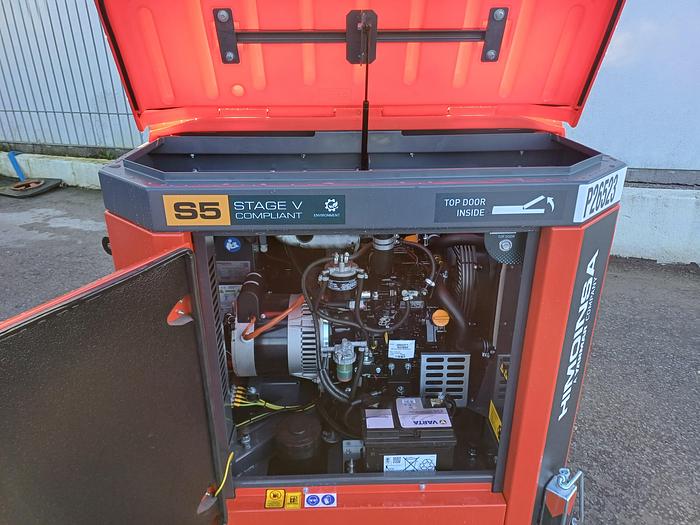

EngineYanmar 2TNV70WHR
L x W x H1190 x 1150 x 2435 mm
Mast Height8.4 M
Power2.8 kVA
Lumens210.000
Weight960kg
Mast Rotation360 degrees
Fuel Tank Capacity220 Litres
